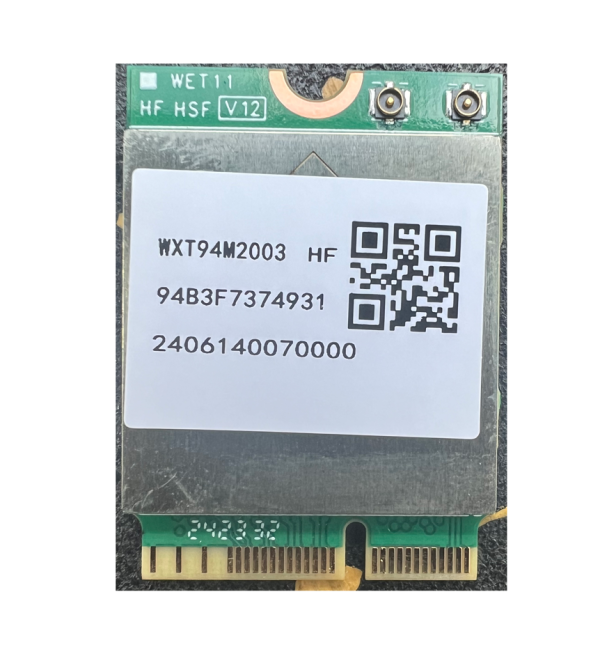

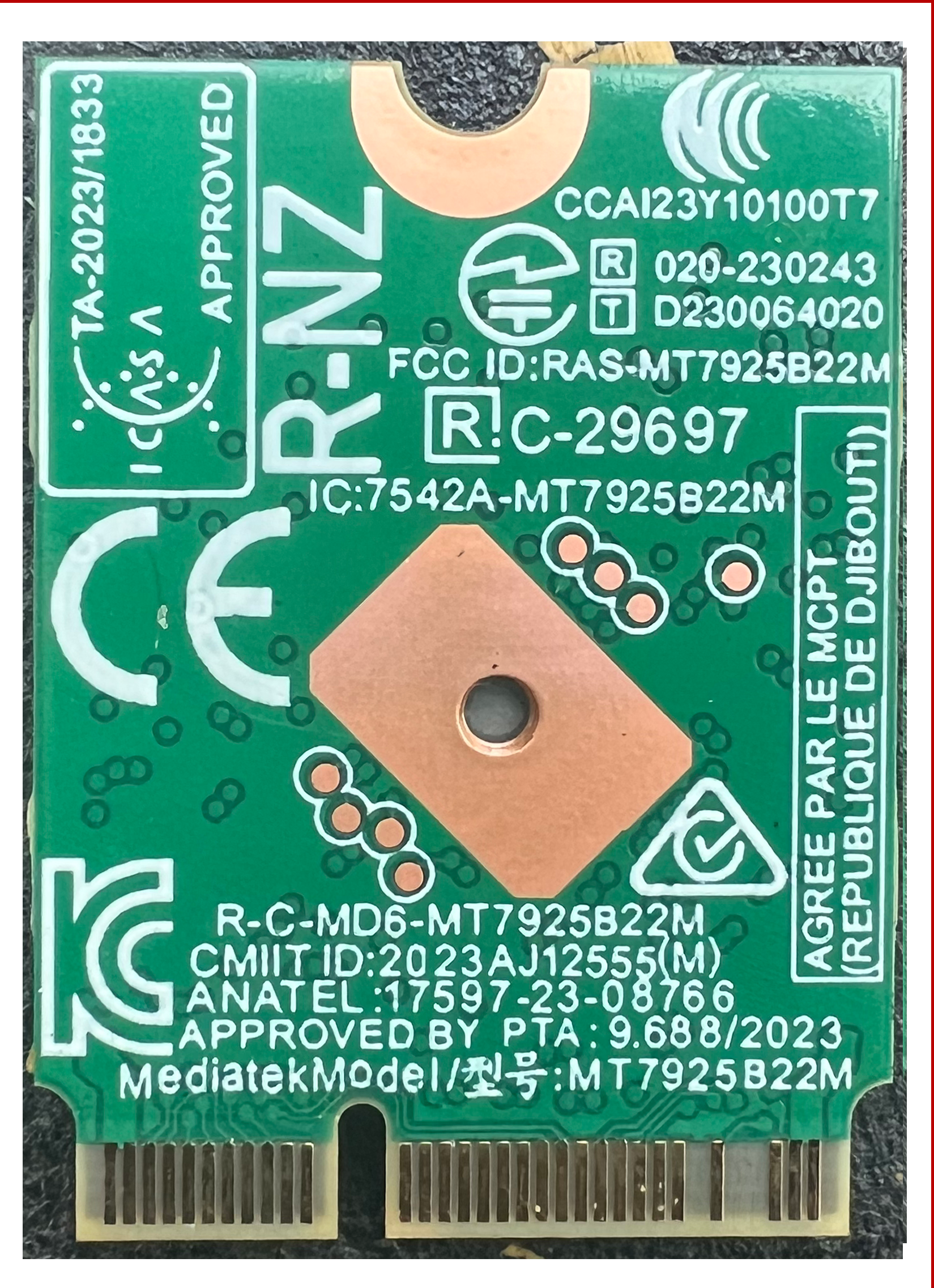

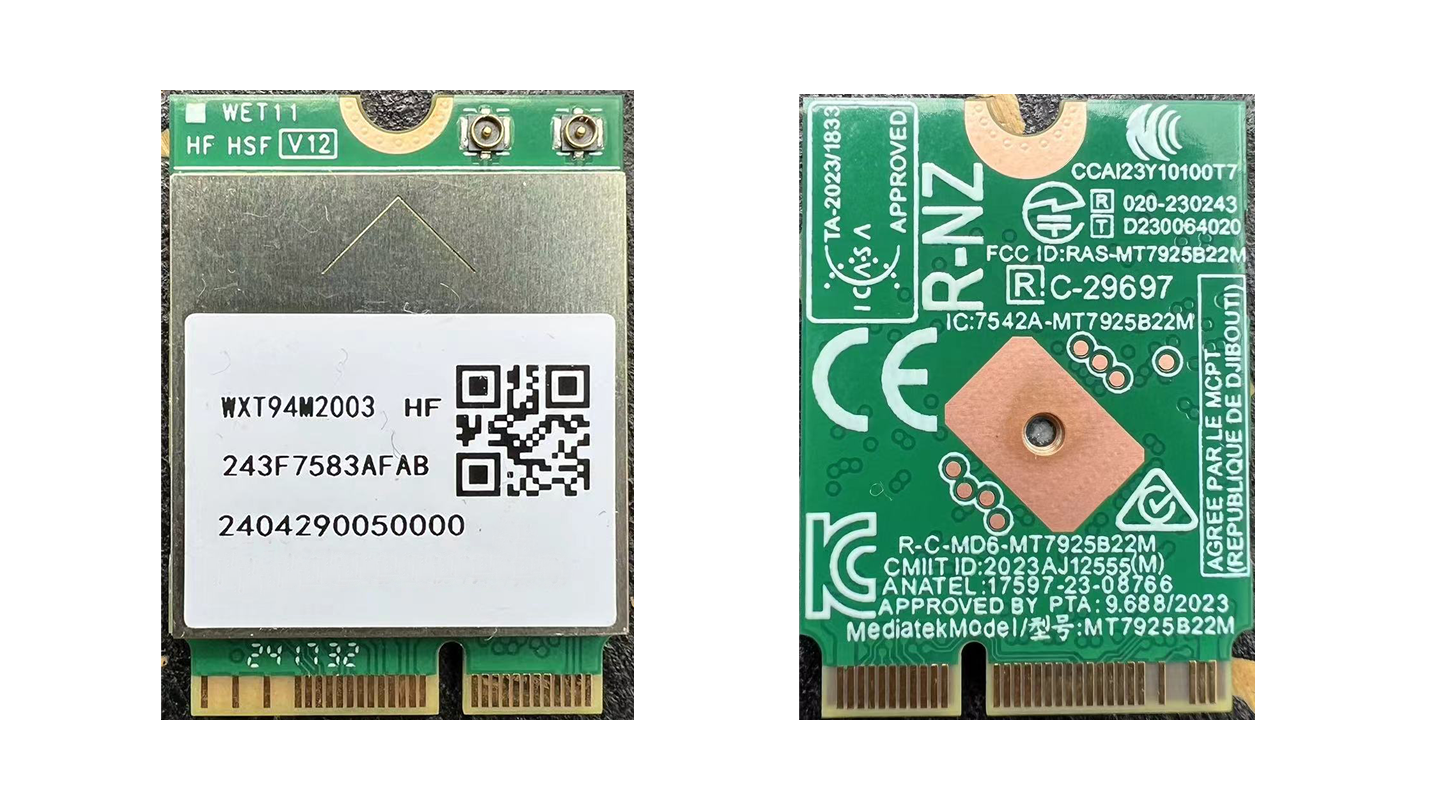

MT7925 Wireless LAN Card
Original price was: $30.00.$21.00Current price is: $21.00.
Product description ：IEEE 802.11 a/b/g/n/ac/ax/be 2T/2R+ Bluetooth V/4.2/5.1/5.2/5.3
Software ：Windows/Linux
Chipset：MediaTek MT7925BEW
Interface：PCIE 3 for Wi-Fi USB v2.0 for Bluetooth
Dimension：22mm*30mm*0.8mm
Card type：M.2 Type 2230-S3-E
Antenna ：IPEX-G4， WIFI&BT→TX&RX(two ant)
Description
MediaTek Wi-Fi 7 MT7925 Network Card is a highly integrated single chip which features a low power 2×2 2.4GHz and 2×2 5/6GHz
MediaTek Wi-Fi 7 (802.11be) device Using Filogic 360, which can support Station, AP, P2P, and
monitor modes. Filogic 360 supports max 4096-QAM/160MHz radio operation at 6 GHz,
5 GHz, or 2.4 GHz with 2×2 antennas.
mt7925 supports Wi-Fi 6E and EHT rate with single link only at this moment,
whereas Wi-Fi 7 and its specific features are working in progress. They will be
introduced in further patches.
- The mt7925 chipset will support a usb version of the chipset.
- This is a WiFi 7 capable chipset.
- It is capable of 160 Mhz channel width.
| Technical Specifications | |
| Product | MT7925 |
| Product Revision | rev 1.1 |
| Bus Type | PCIE 3 for Wi-Fi USB v2.0 for Bluetooth |
| OS | Win 11 |
| Interfaces | M.2 Type 2230-S3-E |
| Wireless Frequencies | 2.4GHz: 688Mbps / 5GHz: 2882Mbps / 6GHz: 2402Mbps, BT 5.4: 2402MHz~2483MHz |
| Total Bandwidth Capacity | 5800Mbps (theoretical), 5800Mbps (MLO) |
| Chipset | MediaTek MT7925BEW (Filogic™ 360) |
| Power Requirements | 10W |
| Dimensions | 22mm*30mm*0.8mm |
| Weight | 0.01 kg |
| Compatibility | |
| Operating System Support | Windows® 11 (64bits, W11 SV3/23H2 minimum) |
| IEEE Support | 802.11 a/b/g/n/ac/ax/be |
| Additional Features | MU-MIMO OFDMA MLO |
| Additional Information | |
| Regulatory Compliance | FCC Part 15 Class B, CE, RoHS |
| Operating Environment | Temperature: 0 ℃ to 55 ℃ Relative Humidity: 10%-90% (non-condensing) |
| Storage Environment | Temperature: -10℃ to 70℃ Relative Humidity: 10%-90% (non-condensing) |
| MTBF | >50,000h @ 25°C |
| Packaging | |
| Contents | 1 x MT7925 WiFi 7 & Bluetooth 5.4 Card |
| Weight | 0.02 kg |
| Downloads | |
| WI-FI$Bluetooth Driver-Intel | Windows 11 x64 MT7925 WiFi 7 5.0.4.0.1920 |
| WIFI Driver-Amd | Win11 AMD WI-FI V5.4 |
| Bluetooth Driver-AMD | Win 11 AMD BT V1.1 |
