Description

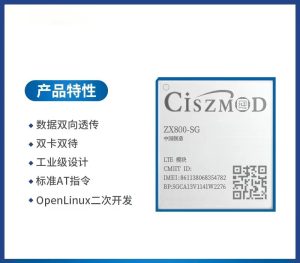

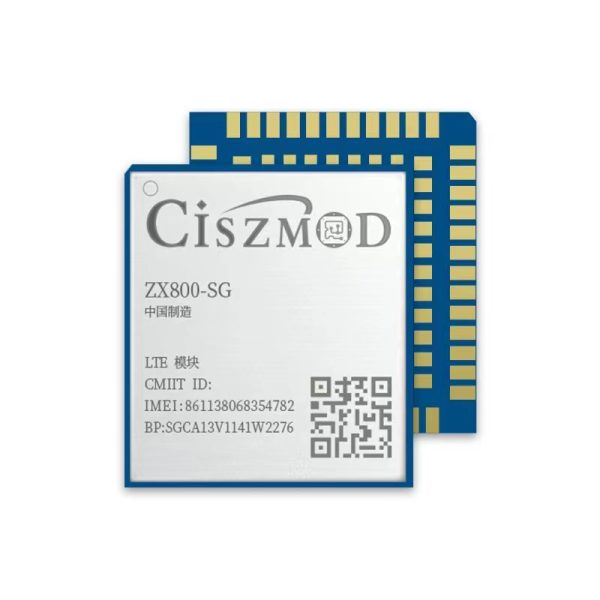

ZX800-SG is an ultra-small LTE Cat.1 wireless communication module series designed for M2M and IoT fields R&D
ZX800-SG can support different LTE bands worldwide and it supports 3GPP Release 13 LTE Cat.1 bis.
ZX800-SG contains a rich set of Internet protocols, industry-standard interfaces and abundant functionalities which
extend the applicability of the module to a wide range of M2M and IoT products, such as OTT, CPE, POS, data cards,
security, and industrial PDAs.
ZX800-SG adopts the laser engraving process, which brings the advantages of better appearance, strong metal
texture, better heat dissipation, information not easily erased, and more suitable for automation needs.



 Ultra-small size(15.8*17.7*2.4mm), designed for M2M and IoT applications, especially for small-size terminals;
 Worldwide LTE TDD&FDD bands are supported in the series;
 Ultra-low power consumption and rich interfaces both in SW and HW;
 USB drivers for Windows 7/8/8.1/10, Linux and Android;
 Supporting remote DFOTA, reducing later operation and maintenance costs;
 Twice R&D by AT and Open CPU.



LTE Features
Protocol:3GPP E-UTRA Release 13
Bandwidth:1.4/3/5/10/15/20MHz
Bands:FDD:B1/B3/B5/B7/B8/B18/
B19/B20/B26/B28/
TDD:B34/B38/B39/B40/B41
Speed:
max 10Mbps(DL)/5Mbps(UL)
@FDD mode
max 8Mbps(DL)/2Mbps(UL) or
6Mbps(DL)/4Mbps(UL)@TDD
mod

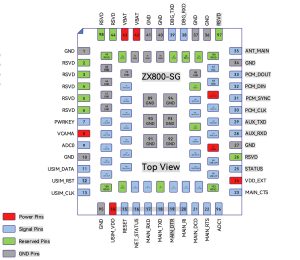

Hardware Interface
1 USB 2.0 High Speed
Up to 2 1.8V/3.0V(U)SIM Interface
Up to 2 UART Interface
Up to 2 I2C Interface
Up to 3 SPI Interface
(Used for flash,camera,LCD etc.)
1 PCM/I2S Interface
2 ADC Interface
Up to 5*5 keypad
PWRKEY (Active low)
Reset (Active low)
1 1.8V power output



Software
Supporting open CPU twice
development
USB drivers:
Windows7/8/10/11,Linux,Android
RNDIS drivers:
Windows7/8/10/11,Linux,Android
Internet protocols:
TCP/UDP/PPP/FTP/HTTP/NITZ/
CMUX/NDIS/NTP/HTTPS/PING/
FTPS/FILE/MQTT/TLS/SSL



RF Performance
Transmission
TX max Power:Class3
(23dBm±2dB)
TX min Power:<-42dBm
EVM:<5%
ACLR:>36db
TX current:<550mA@3.8V@max
power
Reception
RX Sensitivity(BER≤2%):
B1:≤-99dBm(TX@10M 50RB)
B3:≤-98dBm(TX@10M 50RB)
B5:≤-99dBm(TX@10M 25RB)
B7:≤-98dBm(TX@10M 50RB)
B8:≤-99dBm(TX@10M 25RB)
B18:≤-97dBm(TX@10M 25RB)
B19:≤-97dBm(TX@10M 25RB)
B20:≤-99dBm(TX@10M 20RB)
B26:≤-96dBm(TX@10M 25RB)
B28:≤-99dBm(TX@10M 25RB)
B34/38/39/40/41:≤-99dBm
(TX@10M 50RB)



Power Consumption
Leakage current:<10uA@3.8V
Sleep current:<1.0mA@3.8V
Standby current:<10mA@3.8V
Working current:<30mA@3.8V
(with 30 seconds TCP data
transmission every 60 seconds
average current in 15 minutes)



Reception
RX Sensitivity(BER≤2%):
B1:≤-99dBm(TX@10M 50RB)
B3:≤-98dBm(TX@10M 50RB)
B5:≤-99dBm(TX@10M 25RB)
B7:≤-98dBm(TX@10M 50RB)
B8:≤-99dBm(TX@10M 25RB)
B18:≤-97dBm(TX@10M 25RB)
B19:≤-97dBm(TX@10M 25RB)
B20:≤-99dBm(TX@10M 20RB)
B26:≤-96dBm(TX@10M 25RB)
B28:≤-99dBm(TX@10M 25RB)
B34/38/39/40/41:≤-99dBm
(TX@10M 50RB)





Others

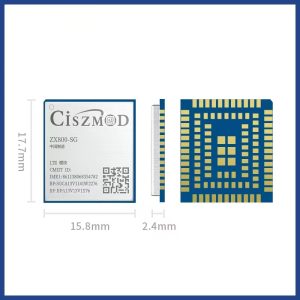

Dimensions:15.8*17.7*2.4mm
Net weights:<2g
Working Temperature:-35~75℃
